Göran Hasse, Raditex Control AB, <gorhas at raditex.nu>

På dessa sidor beskriver vi några koncept för tillverkning av webb-sidor. Ibland finns det behov av att göra mer än vad standardramverk kan erbjuda. Detta gäller speciellt informationssystem kring databaser. Här är det ofta nödvändigt att lista och bearbeta stora mängder information från databasen på ett effektivt sätt. Här lämnar standardramverk liten eller ingen hjälp. I detta fall är specialutvecklade hemsidor enda lösningen.

This is a description on how a framwork for web-programing interfaces for information system. Specific we want to target database interfaces and dash-board applications.
Those interfaces are carracterized by high information density. We want to stuff as mutch information on a single page as possible.
Screens for data input can hold a lot of fields. On a dashboard we want to get overview of a lot of things simultainously. This without switching between pages.

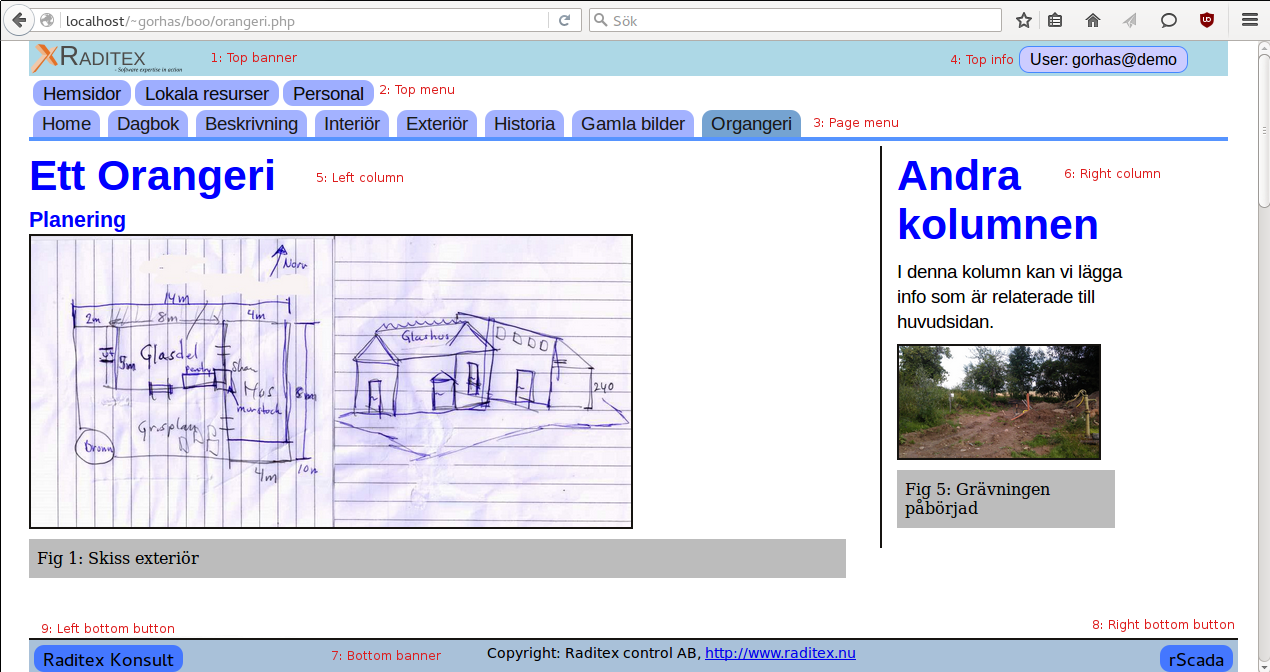

Fig 1: Layout of the pages

• 1: Top banner
• The top banner hold an image
• 2: Top menu
• This menu is a drop down menu to select what part of the system to jump to.
• 3: Page menu
• This menu is to navigage within a collection of related pages.
• 4: Top info
• Here is some status info. It could be te logged in user.
• 5: Left column
• Here is the main content of the page.
• 6: Rigth column
• Some extra info that could be dispalyed. Often references to other sites or advertisment. This column is optitional.
• 7: Bottom banner
• This banner holds a copyright notice and the left and right navigation buttons.
• 8: Right bottom button
• The right bottom button is mostly used as a next page button
• 9: Left bottom button
• The left bottom button is mostly used as a previous page button

We ask... How do we want to write code that create this page? The answer could look like this.
What we want is a clean API written in php that create the page for us.

source-highlight -n --input=raditex-template.php --output=src/raditex-template.php.html

01: <?php
02: //----------------------------------------------------------------------
03: //  Copyright Raditex Control AB, gorhas@raditex.nu
04: //----------------------------------------------------------------------
05:
06: include_once('raditex-config.php');   // configuration data
07: include_once('raditex-library.php');  // main library
08: include_once('raditex-lists.php');    // lists - like menues an other
09:
10: //php_session_start(); // Optitional - If we need login or cookies
11:
12: page_start();
13:
14: page_header($header_image,"User: gorhas@demo.se");
15: page_drop_down_menu($site_menu);
16:
17: page_menu($framework_menu);
18:
19: page_row_start();
20: page_column_start_left();
21:
22: // Main content of site
23:
24: html_h('Template', 1);
25:
26: html_p('Some paragraph text');
27:
28: //... Main content of page here!
29:
30: page_column_end();
31: page_column_start_right();   // Optitional
32:
33: //... Left optitional content
34:
35: page_column_end();
36: page_row_end();
37:
38: page_footer("http://www.raditex.nu","Raditex Konsult","http://www.rscada.se","rScada");
39: page_end();
40: //----------------------------------------------------------------------
41: //
42: //----------------------------------------------------------------------
43: ?>
44:

We need to write three files. First a library - the raditex-library.php. This will write all the html-code to the web-browser. Then we need to crate a CSS stylesheet raditex-standard.css so that we will have all attributes on everything. We will also write a java script library raditex-utils.js that implement, among other things, the drop down menu functionality.
